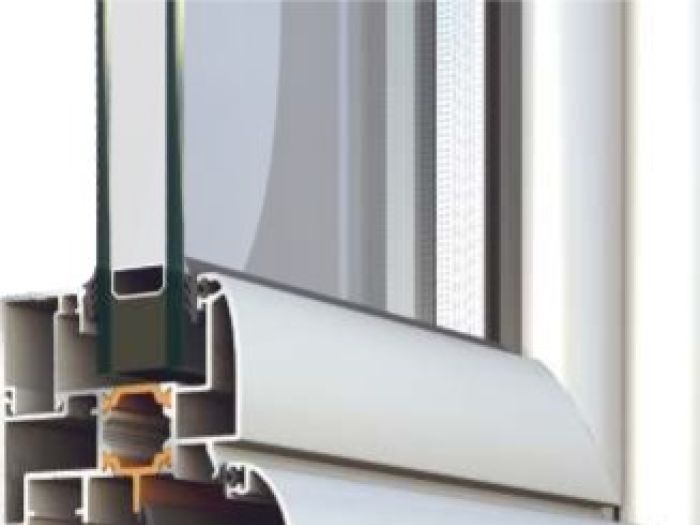

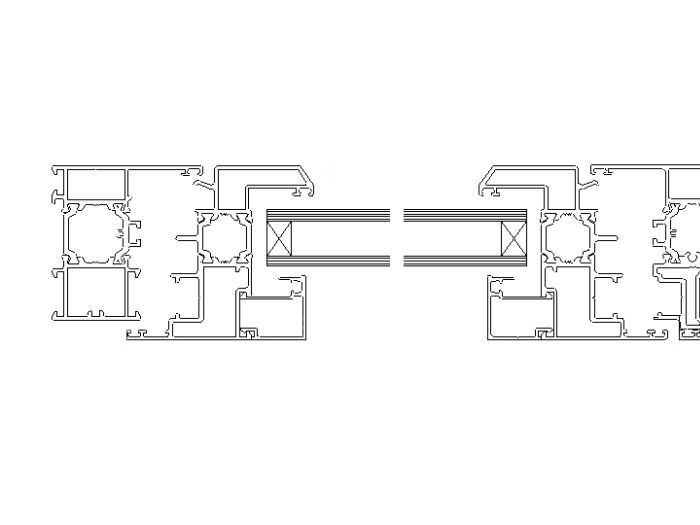

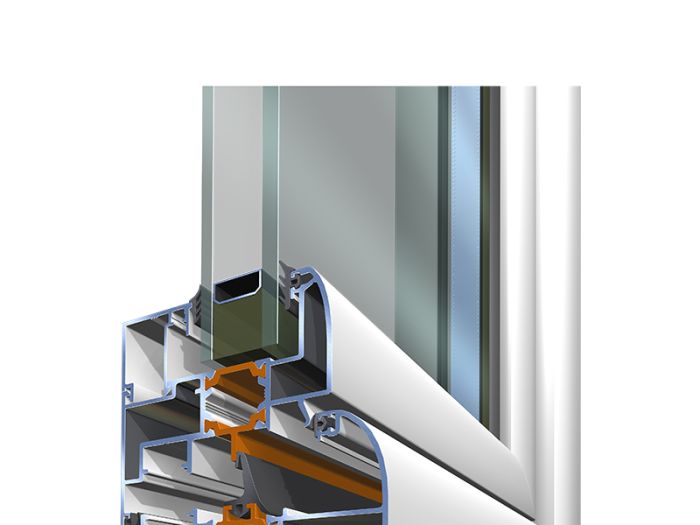

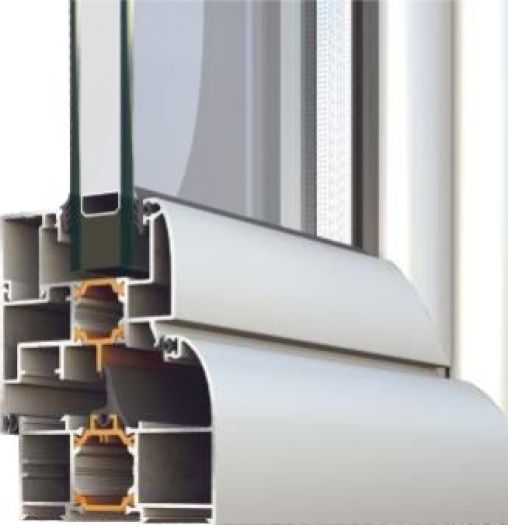

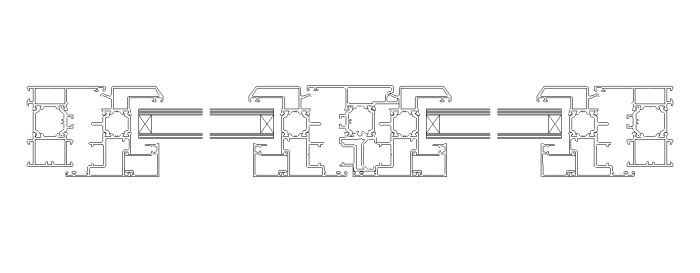

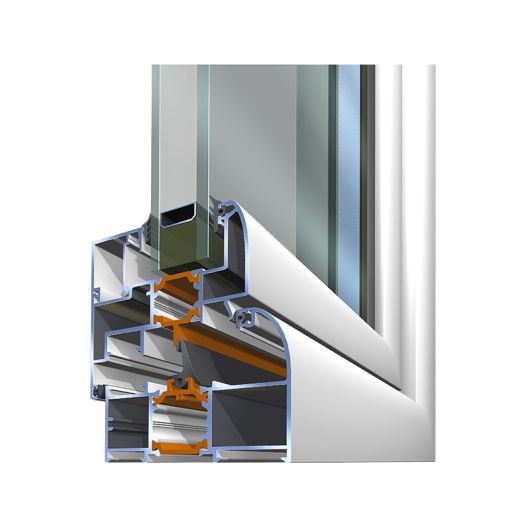

This is system is our base and with this it can be manufctured tilt-turn windows and doors, fixed, awning and entrance doors.
Technical Information:
- Sealing Three perimeter seals with EPDM gaskets
- Basic depth of system 62.5mm or 2 29/64" - Polyamide 24mm or 15/16"
- Multi point mechanism as a standard feature on the operating systems
- Sash weight up to 130kg
- Aluminum alloy AlMgSi (EN AW 6060)
- Hardness 12 Webster or 70 HB minimum
- Minimum Powder Coating Thickness 75μm minimum
- Profile thickness (min-max) 1,4 - 1,6mm
- Profile Geometry Control EN DIN 12020-2 Compliant
- Depth dimensions (Frame\Sash) 62,5 \ 70mm
- Glazing depth Up to 46mm - reinforced polyamide offers increased thermal insulation
