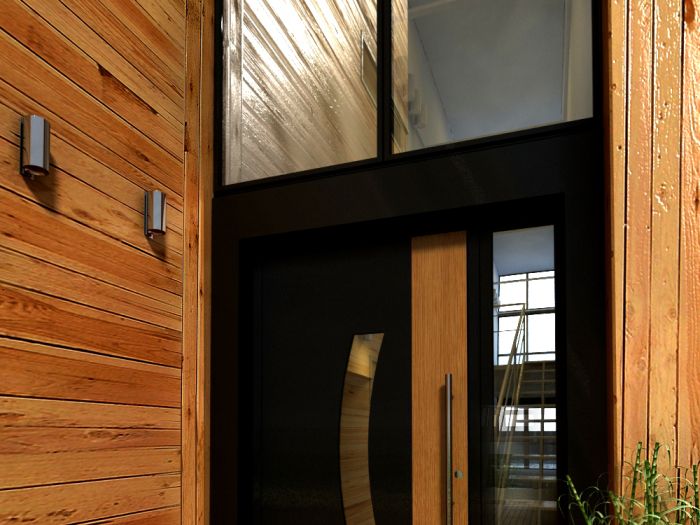

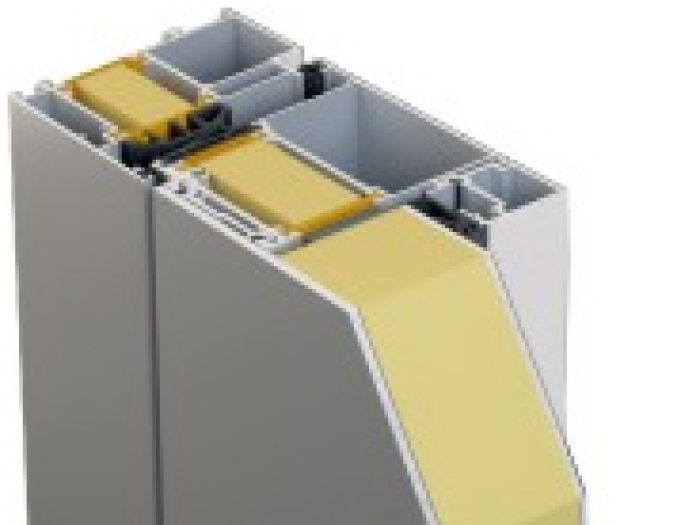

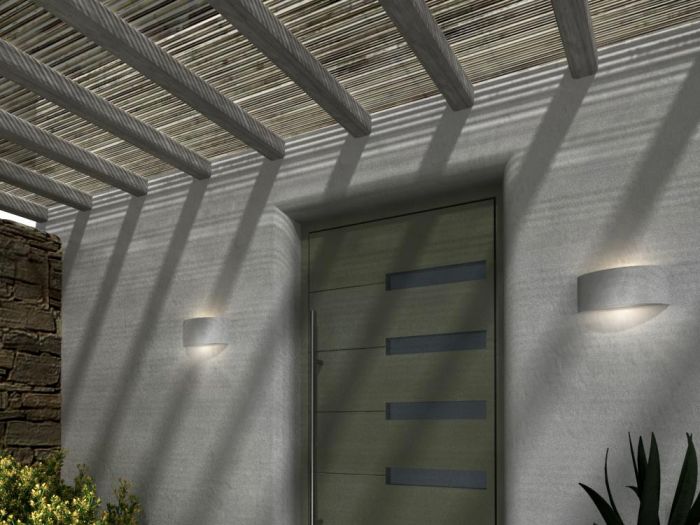

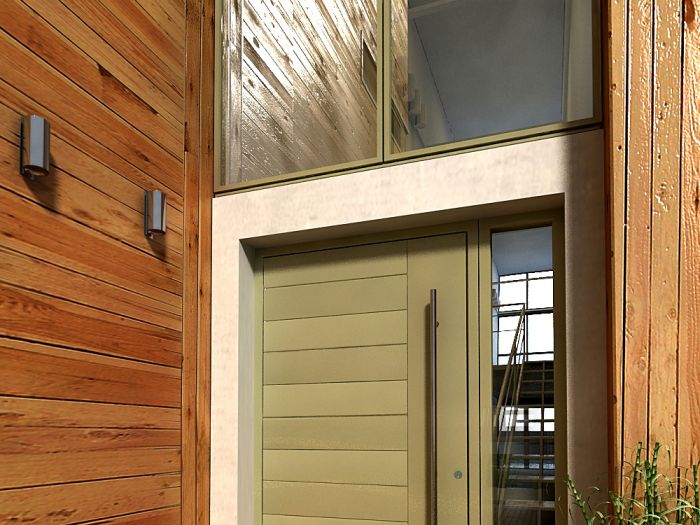

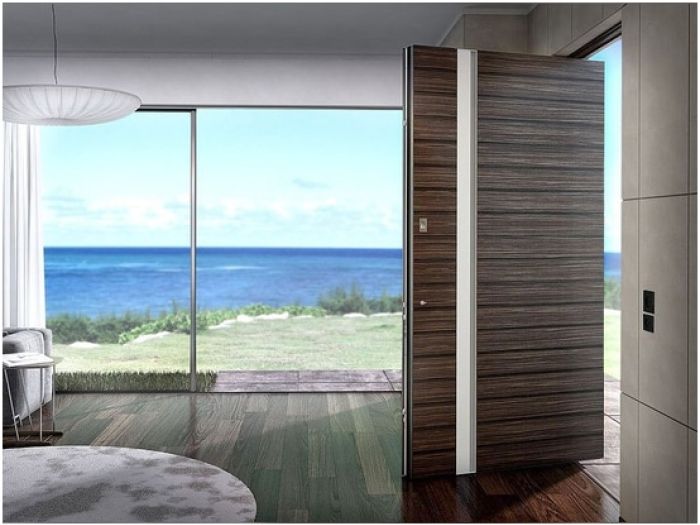

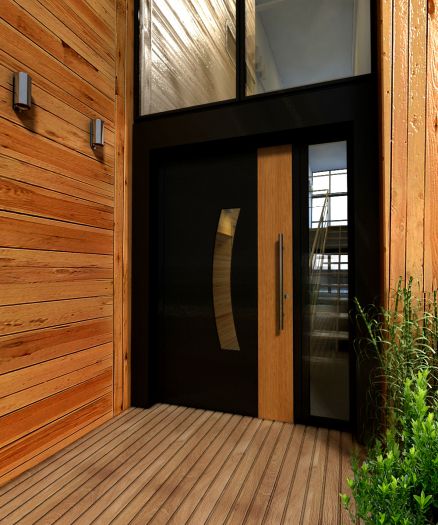

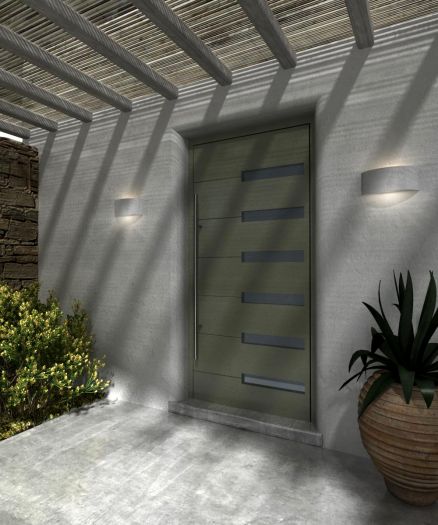

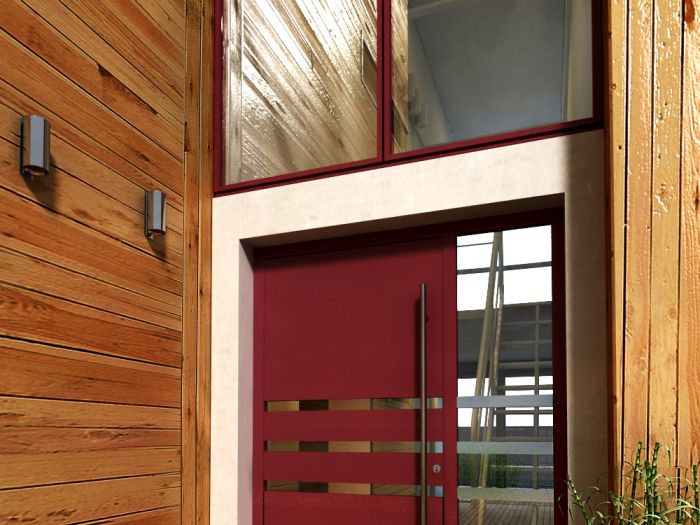

On those entrance doors we can desing whatever you can imagine. Download the brochure or draw us what you want. The system uses special anti-distortion polyamides that provide a thermal break for the system, which in combination with the thermal insulation core insert achieve optimal thermal insulation. In addition, the polyamides minimize the operational problems and accommodate the deflection of the door due to the temperatures difference between inside and outside. 3-level sealing, with the use of specially designed EPDM rubber gaskets with continuous central gasket at the door's sash offers a high level air tightness, waterproofing and insulation.

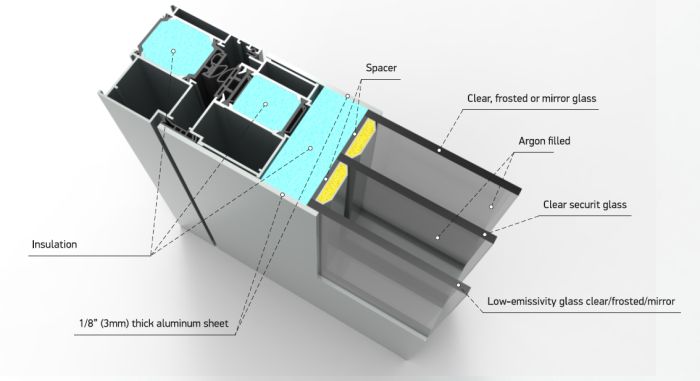

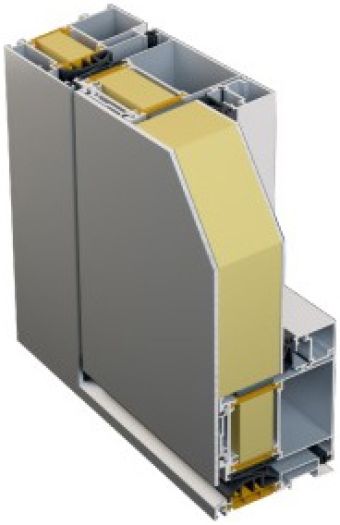

Technical characteristics
- frame profile width: 77mm - 31/32"
- sash profile width: 71 mm - 2 51 /64 •
- aluminum sheets width 1/8" inside and outside
- insulation 70mm - 2 3/4"
- special anti-distortion glass reinforced polyamides, 28mm - 1 7/64", with cool therm core
- continuous central gasket
- 5-point lock as standard
- 3 aluminium hinges, 3-way adjustable
- special 20mm - 25/32" threshold or frame profile all-around
Performance
- heat transfer co-efficient - Uf 0,9 - 1,4 W/m 2K
- heat transfer co-efficient, door panel - Ud <0,60 W/m 2K
- 3 levels of waterproofing (3 gaskets)
- air tightness in accordance with EN 12207: Class 3 (IFT Rosenheim)
- water tightness in accordance with EN 12208: Class 3A (IFT Rosenheim)
- resistance to wind load: C5 (IFT Rosenheim)
